2012 | HBS 300 ARGON BI-SEAL

hebu 845x541


|
service :                                product design
| branch:                                  medical
| producer:                              in-house design PERFEKT Sobierajski
| product category:                device
| product function:                 electrosurgical diathermy , HF genarator
| product state:                       product
| technology:                           QCI Quadur Composite Injection | cast polyurethane | metal cutting
| material:                                Quadur | PUR | metal
| production year:                  2012
| designer:                               in-house design PERFEKT Sobierajski Paulina Kordos, Dawid Żebrowski

| product description:

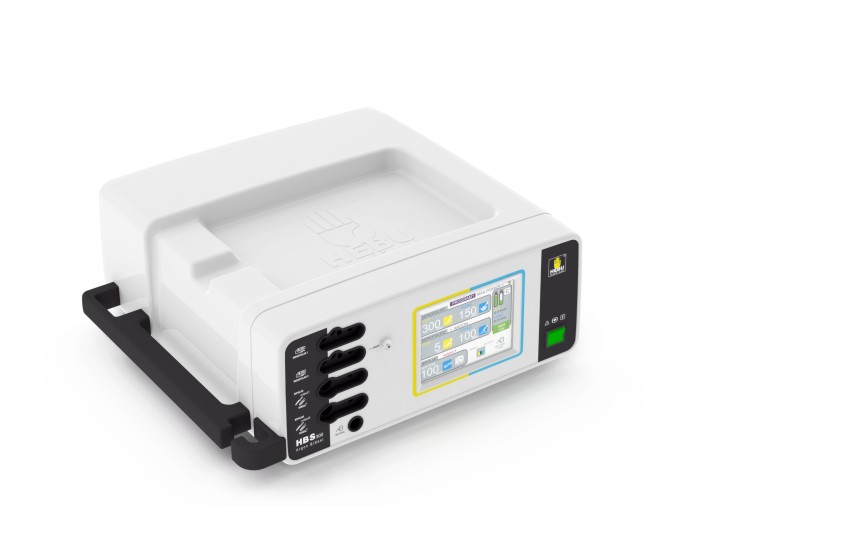

destination Electrosurgical unit of x-touch series – a compact workspace organizer widely use in surgery. Equipped with: monopolar and bipolar coagulation and cuttig modes, Auto Stop function, intuitive, vertical touch screen, integrated argon module, microprocessor with automation patient’s settings adjustment. functionality Functionality is set by top depression for accessories with drainage system, cable’s hanger, plug’s hood. Side holder – long distance transferring by one hand and mounting additional equipment. Undercutting – easy taken off, short distances both hands holding. Material Quadur – easy cleaning, chemical and UV resistance, time production short-cut. ergonomy Easy to use vertical screen ensures proper display of medical data when the diathermy is placed on every medical trolley, dedicated trolley made by producer or celling column.

| case study:
After research analisation and on-line user’s needs review few meaning functional solutions has been proposed, which states about its innovation and make the product market competitive. The housing not only cover the electronics but is as well useful accessories organizer for storing  needed equipement.

| details:
| Cable’s holder and organizer | Main holder for long distance one hand transfering the device in vertical position | The logotype in visible location inform about product brand |Main hanger as a rail for mounting  additional equipement like infusion pumps | Back side as a water proof hood | Top depression for temporarily puting  aside the accessories like the biggest on the marked neutral electrode and instrument’s endings | Water drainage system with slanting surfaces directed unwanted lotions into the outflow | Undercutting for easy taken off from the surface, and short distances both hands holding. | Hollows for mounting the device on producer’s cart| Anti-slanting bumps

| material & technology
The diathermy has been made with Quadur which is polyester composite resistant to chemical liquids and UV. The material is easy to keep clean according to medical restrictions. The Quadur technology helps shorten production times and easy implementation from design stage to mass production. Its facilities allow for achieving precisely ended covers – assembled even with four parts without quality montage losting.

| tags:
| Human Factor | Ergonomy | Functionality | Design Thinking | Process Design | Engineering |  Working Process | Product Design | Medicine | Device |
