2011 | TROLLEY FOR DIATHERMY WITH ARGON

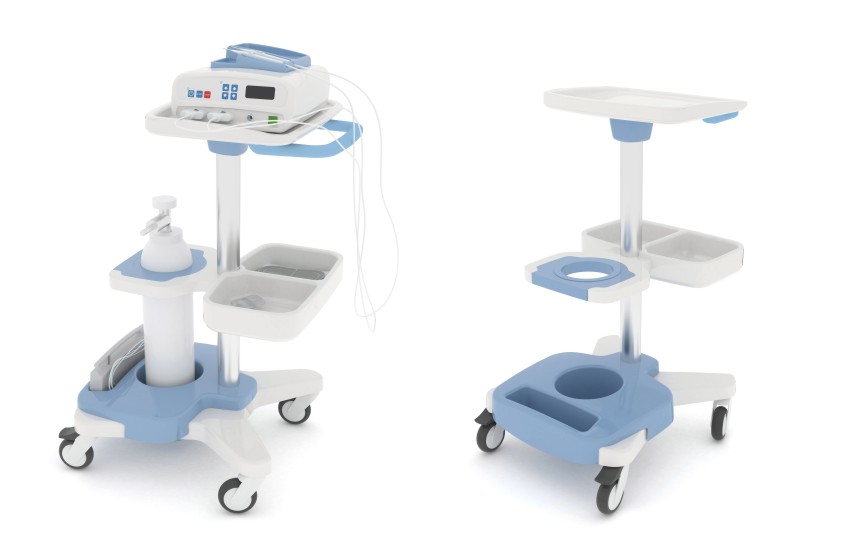

PORTFOLIO 2013_24_BUTLE I DIATERMIA f

| servis :                                  product design
| branch:                                  medical
| producer:                              in-house design PERFEKT Sobierajski
| product category:                workstation
| product function:                 for diathermy with argon
| product state:                       product
| technology:                          QCI Quadur Composite Injection | cast polyurethane | metal cutting
| material:                                Quadur | PUR | metal
| year:                                       2012
| designer:                               in-house design PERFEKT Sobierajski, Paulina Kordos

| product description:
innovation Workstation is designed in that way to assures place for electrosurgery unites. functionality The functionality is set by dedicated modules mounted on the constructive pipe in form of table with the hanger, cuvettes for accessories and dock for a stabilisation the argon’s bottles. ergonomy The place for diathermy unites, accessories neutral electrode and instruments ending, doings for cutting and coagulation obviouse for proper performing the operation. Ergonomy of useing is guaranted by adequate height for stand working.

 | case study:
design chellange Designing stage was preceded by observation the way of performing the operation with useing the diathermy in its prescribed environement. This let to defined the real-existing needs of the user and proposed the proper solutions. Modularity gave easy module montage and demontage during servicing. Lets for the very fast demaged element changeing, material  Material Quadur recommended for production  and technology QCI caused on reaching oval, modern esthetic shapes inscribed very well to up to date hospitals outlook. Smooth surfaces as well as from outside and inside,  without recesses are easy in consservation and keeping product in cleanliness. Hard, bilogically indifferent, chemical lotion resistant, guarrantee longlife cycle of the product.

| details:
| Bordered top table protected the device against sliding | Clamp for cuvette has the function for bottle’s dock equiped with reductive lapels | Down cuvette with the function of cylinder docking  with place for the biggest footswich which coud be find on the market

PORTFOLIO 2013_24_BUTLE I DIATERMIAm

| tags:
| Human Factor | Ergonomy | Functionality | Design Thinking | Process Design | Engineering | Cognitive Psychology | Working Process | Product Design | Medicine | Sanitation | Hygiene |
