2010 | WORKST CRYO

s

| service:                                  product design
| branch:                                   medical
| producer:                               in house design PERFEKT Sobierajski
| product category:                workstation
| product function:
storing devices for lymphatic massage performing
| product state:
product
| technology:                           QCI Quadur Composite Injection | cast polyurethane | metal cutting
| material:
Quadur | PUR | metal
| production year:
2010
| designer:

in house design PERFEKT Sobierajski, Paulina Kordos

| product description:
Workstation organizes work for devices taking parts in lymphatic massage. The functionality is stated by dedicated modules fastening on the construction pipe in form of upper shelves with inbuild protruding rod for bearing accessories for making the massage performance, two – functional grip in form of cable’s hanger and cable’s supporter running out from the front of the device, middle ring for gripping clothes staff, back hanger for on – patient putting anorac needed during performing the massaging process, and mobile platform with cuvette for supporting hanging cables. Ergonomy of using strongly is accented  on product’s heigh which is cutted  for standing position working  .

| case study
design chellenge Workstation is build on the basis of Modular Trolley System. Designing stage was preceded by observation the way of performing the medical treatment in its prescribed environement. This lets to defined the real-existing needs of the user and proposing the proper solutions. Modularity gave easy module montage, demontage and servicing. Lets for the very fast changing the demaged element. Material Quadur recommended for production and technology QCI caused on reaching oval, modern esthetic shapes inscribed very well to up to date hospitals outlook. Smooth surfaces as well as from outside and inside, without recesses are easy in conservation and keeping product in cleanliness. Hard, bilogically indifferent, chemical resistant , guarrantees longlife product’s lifecycle .

| details:
| Hanger as a now-existed, semi-product taken from the market for storing clothe’s staff like anorac for lymphatic massage performing | Upper shelves with inbuild protruding rod for bearing the rest staff of accessories for lymphatic massage performance like bundle of cables and trouser’s leg | Main grip as a cable’s support| Middle ring for gripping clothes staff, and cable’s conducting | Mobile platform with cuvette for cable’s supporting nad preventing them to touching the floor

PORTFOLIO 2013_23_CRYOFLEX 8

PORTFOLIO 2013_23_CRYOFLEX 2

PORTFOLIO 2013_23_CRYOFLEX 3

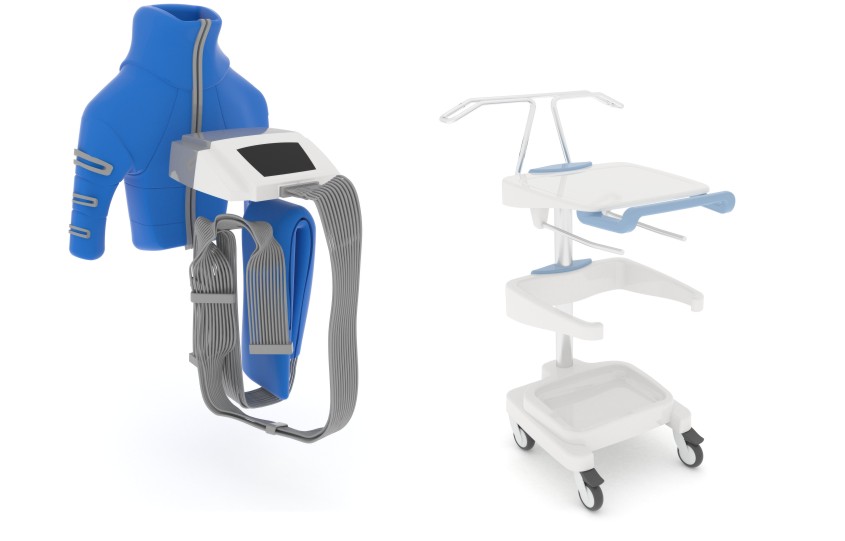

PORTFOLIO 2013_23_CRYOFLEX 4

| tags:
| Human Factor | Ergonomy | Functionality | Design Thinking | Process Design | Engineering | Cognitive Psychology | Working Process | Product Design | Medicine | Sanitation | Hygiene
