2012 | OEM FOR ELECROSURGERY UNIT DH01

PORTFOLIO 2013_13_DH 04
| serwis :                                    product design
| branch:                                     medicine
| producer :                                in house design PERFEKT Sobierajski
| product category:                   OEM housing
| product function:                    for electrosurgical units
| material:                                   Quadur, PUR, metal
| technology:                              QCI Quadur Composite Injection / cast polyurethane
| production year:                     2012
| designer:                                  Paulina Kordos

| product description:
destination In OEM housing dedicated for the electrosurgical units simply functional solution was implemented as an answear for real and basic users needs like temporary putting away all needed accessories taking part during performing medical treatment. functionality On  the top of the housing, low depression is a prescribed for placing single-usage neutral electrode  with its cables. Back hood for protection plugs and sockets. Housing is easy in assembling, disassembing and service. Consists of three elements the top housing, down housing and top deck which can be rechangable part. ergonomy Side undercuttings for both hands holding and long distance transfering,  Slanting screen is designed for working with the device in two positions standing one and sitting.

| case study:
Choosing the material Quadur and its features let to gain ovoid, asymetrical, and plastic forms with flat and polished surfaces easy to clean and keeping in cleanness. Four phased composite with mixture of recyclate is fast, become light, bilogically indifferent, easy in keeping clean and maintenance, resistant to acting chemical lotions, guarrantee long life product cycle. Very well fullfiled the demands for medical environment.

| details:
| In built cuvette for handy, single usage accessories like neutral elektrodes and cables | Front hood for securing the plugs | Back hood for securing the sockets |  Interface in horizontal position designed for standing work position | Place for producers logo | Big, knob for steering

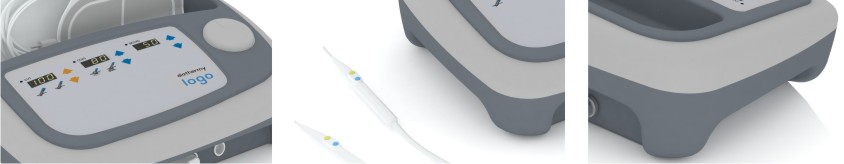

OEM DH 01 (1)

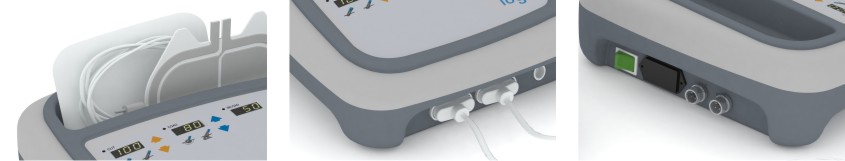

OEM DH 01 (2)
