2010 | WORKST EMG

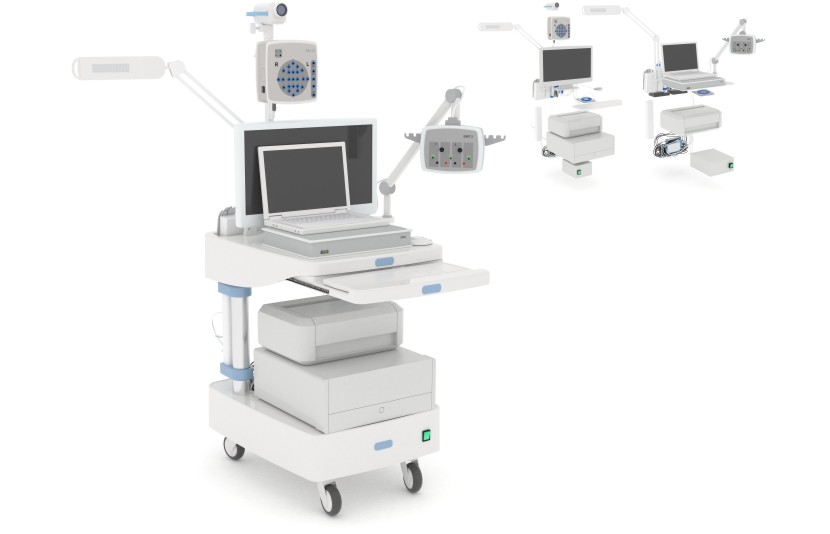

Backup_of_PORTFOLIO 2013_9_WORKST EEG_EMG_830 -534

| service:                                 product design
| branch:                                  medical
| producer:                              in house design PERFEKT Sobierajski
| product category:               workstation | trolley
| product function:
for EMG / EEG examination
| product state:
product
| technology:                          QCI Quadur Composite Injection | cast polyurethane | metal cutting
| material:
Quadur | PUR | metal
| year:
2010
| designer:
in house design PERFEKT Sobierajski, Paulina Kordos

| product description:
Mobile workstation designed for conducting neurophysiological examination EMG – Electromiography picturing muscles activity and currenting in circular’s nerves and EEG – Electro Encephalography examination of bioelectic brain’s activity thanks to registering brain’s waves. One form of workstation takes for granted place for the most needed assortment needed during performing both examination EEG and EMG. Picks up it in one location devices for patient’s stimulation, for registering the examination’s process, recording, read out and outcome raporting – all that for correct, adequate to the procedures performing .

| case study;
Hardness of the project was to deliver the workstation in that form to satisfy the needs of performing at last two examination EMG and EEG. To achiving that solution all assortment was shared and divided into groups according to its function and frequency of using, and alocated on the exact position in that way  to make the work easier, less time-consuming and more effective. The cable segregation system solved the problem of cable instalation disorder. The project restriction was the packaging’s capasity during product logistic in which the modules might be stored. On the account of restricted budget the number of consisting elements was minimalised with saving maximum functionality. Material Quadur and its  features allowed for gaining ovoid, smooth and plastic shapes. Easy in keeping clear.

| details:

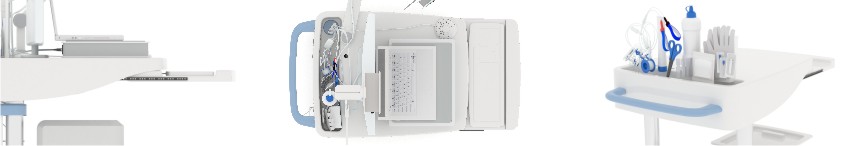

| Sliding keyboard shelve increases the working space | In built top cuvette for storing “clean” accessories like protective materials for medical personel, remedies, body and tool’s disinfection lotions; doings for applying the oinments and stabilising dressings on patient’s body | Main grip for steering | Top shelveplace for additional upper construction mounting | Mobile platform in form of box as a place for hiding the transformation  with very easy access inside | Down cuvette for ” dirty” assortment, which may have contact with the floor, like laptop supplier, transformator’s cable, footswitch | Cable’s system segregating in the  form of polyurethane adjoining labels on the construction pipe | Drilled holes in top table’s cuvettes and down box for conducting cables instalation

EEG EMG2

EMG EEG



| tags;
| Human Factor | Ergonomy | Functionality | Design Thinking | Process Design | Engineering | Cognitive Psychology Working Process | Product Design | Medicine | Sanitation | Hygiene |
