STAND FOR DOCKING STATION OF INFUSION PUMPS – PRODUCT

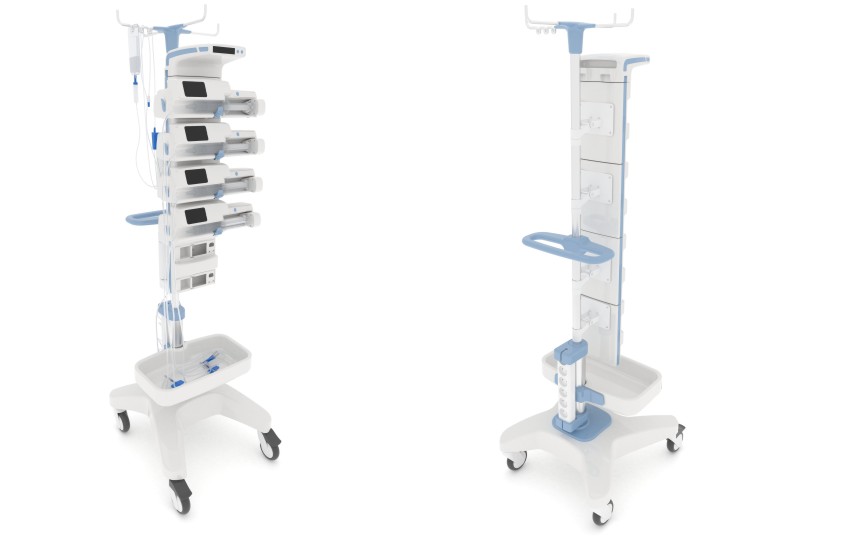

medima produkt

| service :                                 product design
| branch:                                   medical
| producer:                               in-house design PERFEKT Sobierajski
| product category:                 stand | trolley | workstation
| product function:                  for docking station of infusion pumps
| product state:                        product
| technology:                            QCI Quadur Composite Injection | cast polyurethane | metal cutting
| material:                                 Quadur | PUR | metal
| year:                                        2011
| designer:                                in-house design PERFEKT Sobierajski Paulina Kordos

| product description:
Mobile, practical stand for huddleing docking stations of syringe infusion pumps with its top hood and rest needed equipement in one location. Using mainly in the hospital’s ward.  It is made of the elements from MTS ( Modular Trolley System) like: mobile X – platform , front cuvettes for temporary put aside drainage’s pipes, construction’s pipe for bearing the all, horizontally mounted hanger , cable’s system ordering, elements for electric slat keeping, semi-product – system vesa, top hanger for bearing plastic bag with infusied medicament .

| case study:
As a designe chellange it was to sustain the stand in a very similar esthetic line as the first product – syringe infusion pump had. Material Quadur choosed for the production and its properties let to achieve ovoid, plastic form with smooth surfacees without difficult to cleand depression and construction edges. Lasting, biologically indifferent, easy in conservation, chemically resistant guarantes long product life cycle.

| details:

1

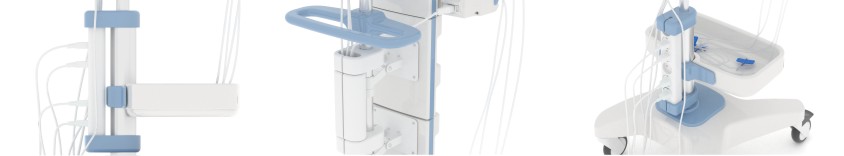

2

|  Hanger for bearing plastic bag with infusing medicament |  System vesa as a semi-product elements  for mounting the equipement – easy to find on the market | Cable’s system ordering | Elements keeping the electric slat – as a one source of energy | Horizontal grip on the proper stand’s height | The docking station is equiped with universal system of fixing as well to the construction stand’s pipe and in ambulance during transportation

| tags:
Human Factor | Ergonomy | Functionality | Design Thinking |Engineering | Working Process | Product Design | Medicine | Sanitation | Hygiene |
