2010 | WORKST EEG

PORTFOLIO 2013_27

| service :                                product design
| branch:                                  medical
| producer:                              in house design PERFEKT Sobierajski
| product category:               workstation
| product function:                for EEG examination
| product state:                       product
| technology:                          QCI Quadur Composite Injection | cast polyurethane | metal cutting
| material:                                Quadur | PUR | metal
| year:                                       2010
| designer:                               in house design PERFEKT Sobierajski, Paulina Kordos

| product description:
Mobile, near-to-bed workstation for performing noninvasive bioelectronic brain activity EEG Electro Encephalography. This relay on registering with the help of encephalograph the changings of electric impulse on the head’s skin surfaces coming from neuron’s brain core. It is designed in accordance with obliged procedure of making the EEG examination. Workstation arranges in one place required accessories, instruments, materials, disinfection and cleaning means, and as well on-patient applied lotions. Gives proper location for  EEG recording device  and its electrodes adequately to the patients needs. All that for easy and corect medical examination realization with time operator’s efficiency and user’s comforty. The product can equiped CFM or EMC examination.

| case study:
Before the projecting stage ergonomy recognition, work process observation and equipement analisation has been made during observing real performing of this medical examination. The workstation finally was built on the base of Modular Trolley System. This minimised the implementation budget. The modularity gave easy product montage and demontage, fast  damaged element changing and opportunity for market economy or client’s needs individualisation. Can be launched fully equipped or in economic version. Quadur – material choosed for production allowed for smooth, ovoid and plastic forms with polished surfaces easy in keeping clear. That hard, biologically indifferent, easy in conservation, chemical resistan material guarantees long product life cycle.

| details:

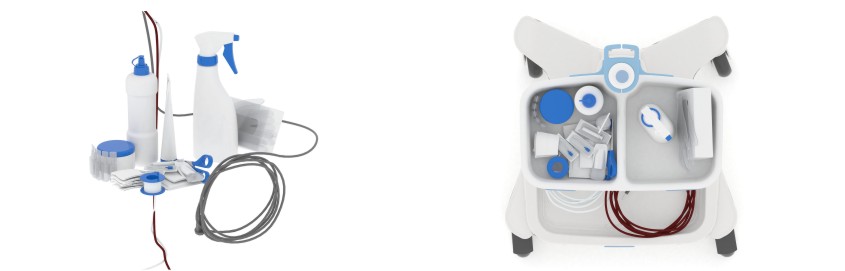

|The top cuvettes as a working table for puting aside in-plug doings like: head and arm’s electrodes | Middle sheleve for storing clean accessories like: means of protection and disinfection, on-applied lotions , dressing materials for preparing, cleaning, and stabilization the apparatus on patient’s skin like bandages, scissors,  sticking plaster | accessories for applying medical oinments and smears for examination performance like needles, and syringes | Wested scraps and used packages from single used accesories after examination | Down cuvette – place for dirty equipement like floor – touching  cables | On pipe mounting cable’s system holding and ordering | Mobile platform for manoeuvering | Adequate high for standing work position | Steering back grip | Rail for keeping in proper position device’s head which registering the route of the examination | Mounting construction pipe  | Inside or outside cable’s system  conducting

PORTFOLIO 2013_27d

PORTFOLIO 2013_27r

PORTFOLIO 2013_27gg

PORTFOLIO 2013_27g

S
| tags:
| Human Factor | Ergonomy | Functionality | Design Thinking | Process Design | Engineering | Cognitive Psychology | Working Process | Product Design | Medicine | Sanitation | Hygiene
