2011 | TROLLEY – MEDICAL ASSISTANT

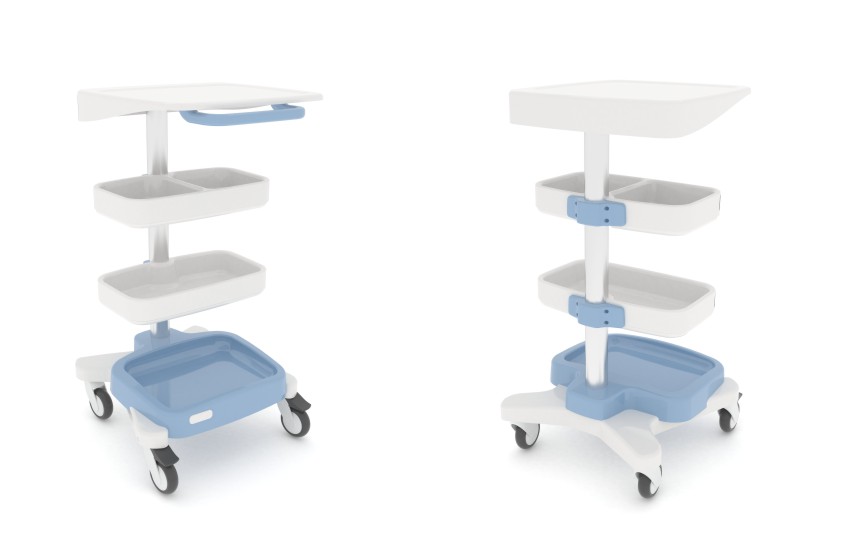

asystor 3

| service:                              product design
| branch:                               medical
| producer:                           in-house design PERFEKT Sobierajski
| product category:             trolley
| product function:             assists during performing any medical treatment
| product state:                   prototype
| technology:                       QCI Quadur Composite Injection | cast polyurethane | metal cutting
| material:                            Quadur | PUR | metal
| year:                                   2011
| designer:                           in-house design PERFEKT Sobierajski, Paulina Kordos

| product description:
Mobile, universal asystor, can become well equiped workstation and assists for every specialistic medical treatment. Designed on the base of Modular Trolley System. Equiped with flat table, front  holder, upper divided container and lover one mounted by the clasp to the construction pipe. On the mobile platform is placed depression for holding dirty accessories which during work may have contact with the floor. The all construction is set on th X form of mobile platform this gives the stability for the whole structure.

| case study:
Modularity gives easy montage and demontage during servise and repairment. Allows for swift switching damaged elements. The ergonomy of using is settled by adequate heigh for the work. The features of Quadur material: light, four-phased composite with addition of recyclate materials which weighted the whole up and gives stabilisation. Easy in maintenance, fullfilled the stipulation for access the manufacture for been used on the operation theaters – proof against damageable factors of hospital’s environment.

| details:

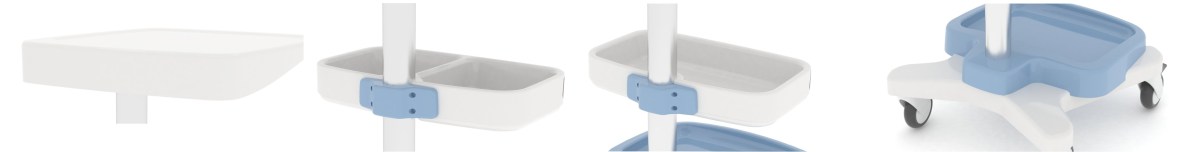

| Top, on put table| | Divided and undividet cuvette mounting on the construction pipe | Mobile platforms with with put on cuvette

assistant

| tags:
| Ergonomy | Functionality | Working Process | Product Design | Medicine | Sanitation | Hygiene
