2011 | WORKST HONZA

PORTFOLIO 2013_26 2| service:                                 product design
| branch:                                  medical
| producer:                              in-house design PERFEKT Sobierajski
| product category:                workstation  | trolley
| product function:                 with inbuilt steering panel
| product state:                       product
| technology:                          QCI Quadur Composite Injection | cast polyurethane | metal cutting
| material:                                Quadur | PUR | metal
| year:                                       2010
| designer:                               in-house design PERFEKT Sobierajski Paulina Kordos

| product description:
Workstation with the function of in build, dedicated keyboard and aslant top table for better hand positionning. The all consist of Modular Trolley System’s elements .Its modules creates universal workstation for storing and organizing in one place needed asortment for work using during medical treatment. There is the possibility of adding new another one like cable’s system segregation. Upper pipe for fastening and positioning monitor. Modularity allows for using one modules as well as top table and downing one. Worked out one standard system of montageing elements. The clemes as a construction’s elements became exposed and turned into strong stylistical accents. Down box gives possibilities for device’s housing. Workstation prescribed for making work in standing position.

case study:
The destined material for production – Quadur thanks to its character and addings lets to obtain smooth, hard and polished surfaces, biologically neutral, UV and chemical lotion resistant. All that aspects is a warranty for long-lasting product’s live. Restriction of the project was budget dedicated for implementation, which directly had an impact on minimalizing the amount of tools preparation for achieving the assembling parts. One of the requirement was defined module sizes which had to match to the package capacity.

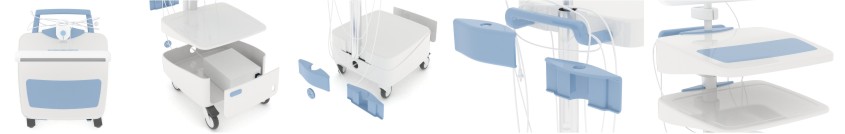

| details:PORTFOLIO 2013_26 a

| In built steering panel working area | Down box as an in built mobile platform | | In standard used cleme mounting system for down, middle and up shelves  | Upper shelves used as a deck in the box ( one element with two function) | Back main hanger for maneuvering and as a cable  hanger and cover for devices | Top table with in built steering keyboard

| tags:
| Human Factor | Ergonomy | Functionality | Design Thinking | Process Design | Engineering | Cognitive Psychology |  Working Process | Product Design | Medicine | Sanitation | Hygiene | Social Design
